Insert or X-ref Active Block

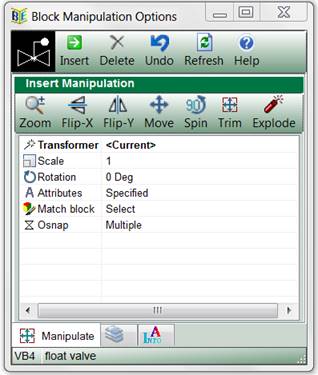

This module is displayed when a block is Inserted or X-referenced:



Main toolbar:

Insert — insert or x-ref another instance of the current block

Delete — delete the current block instance

Undo — undo a previous action

Refresh — click this button when a current block was modified using AutoCAD or IntelliCAD tools

Help — display contextual help



This module provides three tabs for switching to the following tools:

·      Manipulate tab — displays Insert Manipulation Panel






·      Properties tab — displays Insert Properties Panel





·      Settings tab — displays Active Block Settings Panel
